    V38 Camera Interface Line Scan Lenses

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VCT35/2.8-0.10X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    V38 Camera Interface Line Scan Lenses

    F2.8-F16 Line Scan Lenses Coloretto Series Low Distortion V38 Camera Interface OPT-VCT35/2.8-0.10X


    Product Features
    ◆ Flange focal distance(mm) of OPT-VCT35/2.8-0.10X is 33.0 | 35.1| 43.1.
    ◆ It is suitable with line scan camera with 7um pixel and with high resolution optical design.
    ◆ Working distance(mm) of OPT-VCT35/2.8-0.10X lenses is 880.1 | 355.1 | 111.2.
    ◆ Relative distortion of this type of lenses is less than 0.6%.
    ◆ Image circle range is wide which is from Ø 30mm to Ø 82mm.
    ◆ Distortion(%) of lenses is about 0.50% | 0.07% | 0.90%.
    ◆ Broad spectrum range is from 400nm to 700nm with achromatic design.
    ◆ Object to image distance(mm) of OPT-VCT35/2.8-0.10X: 939.4 | 416.5 | 180.6.
    ◆ The range of magnification of OPT-VCT35/2.8-0.10X is 0.04x - 0.33x
    Coloretto series line scan lenses OPT-VCT35/2.8-0.10X focal length is 35mm.
    Magnification of lenses OPT-VCT35/2.8-0.10X is 0.04X | 0.10X | 0.33X.
    Model Explanation
    OPT-VCT35/2.8-0.10X
    OPT: Brand name
    V: V-Mount
    CT: Coloretto series line scan lenses
    35: Focal length 35mm
    2.8: F#: 2.8
    0.10X: 0.10X primary magnification
    Specifications
    ModelOPT-VCT35/2.8-0.10X
    Focal Length35
    Working Distance(mm)880.1 | 355.1 | 111.2
    Aperture F/#F2.8-F16
    Image Circle(mm)30
    Magnification x0.04X | 0.10X | 0.33X
    Distortion(%)0.50% | 0.07% | 0.90%
    Distortion(%Max)<0.07%
    Flange Focal Distance(mm)33.0 | 35.1| 43.1
    Object To Image Distance(mm)939.4 | 416.5 | 180.6
    Camera InterfaceV38
    Weight(Kg)0.12kg

    Resolution Comparison
    Image taken via Coloretto Image taken via other lens
    MTF Chart
    SPATIAL FREQUENCY IN CYCLES PER MM
    OPT-VCT35/2.8-0.10x

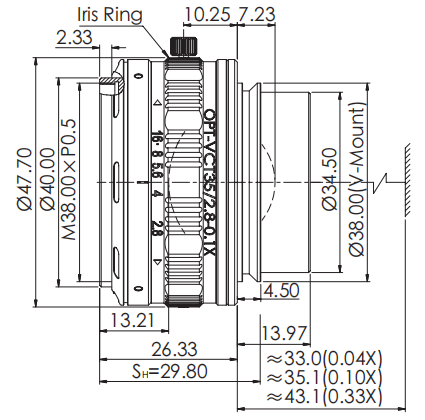

    Dimensions (mm)
    OPT-VCT35/2.8-0.10X
