    Focal Length 61.5mm Line Scan Lens F4.0-F32 Coloretto Series Image Circle 63mm

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VCT60/4.0-0.17X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    Focal Length 61.5mm Line Scan Lens F4.0-F32 Coloretto Series Image Circle 63mm

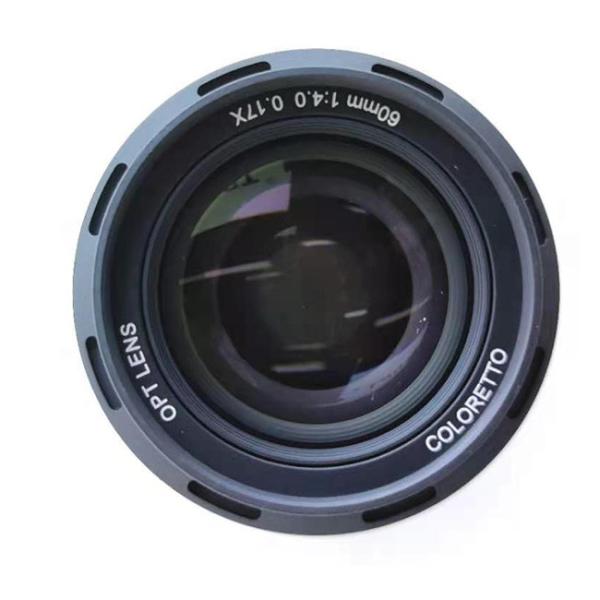

    Line Scan Lenses Focal Length 61.5mm F4.0-F32 Coloretto Series Image Circle 63mm OPT-VCT60/4.0-0.17X


    Product Features
    Line Scan Lenses Aperture F/#: F4.0-F32
    ◆ With high resolution optical design, and compatible to line scan camera 7um pixel .
    ◆ Distortion(%) of lenses is 0.30% | 0.05% | 0.25%.
    ◆ Working Distance(mm) of this industrial lenses is 1528 | 394.3 | 217.
    ◆ Object To Image Distance(mm): 1613.9 | 488.1 | 320.8.
    ◆ 400 to 700nm broad spectrum
    ◆ This type of lenses are designed to be achromatic.
    ◆ 0.04X to 0.33X magnification; many different industrial applications can be accomplished by the OPT-VCT60/4.0-0.17X lenses.
    ◆ Be under of line and area scan camera and suitable for 63mm image circle.
    ◆ Image circle(mm) is 63mm.
    ◆ Focal length of line scan lenses OPT-VCT60/4.0-0.17X is 61.5mm.
    Magnification of lenses is 0.04X | 0.17X | 0.33X.
    ◆ Flange Focal Distance(mm) of OPT-VCT60/4.0-0.17X lens is 54.4 | 62.3 | 72.3.
    Model Explanation
    OPT-VCT60/4.0-0.17X
    OPT: Brand name
    V: V-Mount
    CT: Coloretto series line scan lenses
    60: Focal length 61.5mm
    4.0: F#: 4.0
    0.17X: 0.17X primary magnification
    Specifications
    ModelOPT-VCT60/4.0-0.17X
    Focal Length61.5
    Working Distance(mm)1528 | 394.3 | 217
    Aperture F/#F2.8-F16
    Image Circle(mm)63
    Magnification x0.04X | 0.17X | 0.33X
    Distortion(%)0.30% | 0.05% | 0.25%
    Distortion(%Max)<0.08%
    Flange Focal Distance(mm)54.4 | 62.3 | 72.3
    Object To Image Distance(mm)1613.9 | 488.1 | 320.8
    Camera InterfaceV38
    Weight(Kg)0.15kg

    Resolution Comparison
    Image taken via Coloretto Image taken via other lens

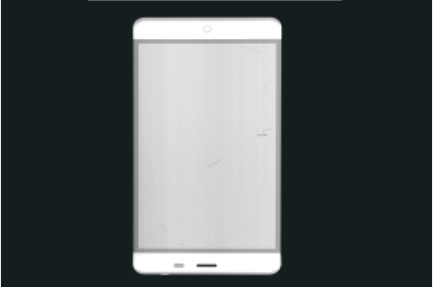

    Application Examples: Inspection for mobile phone screen scratches
    Dimensions (mm)
    OPT-VCT60/4.0-0.17X
