    Cobra Series Fixed Focal Length Lenses F2.8-F16 Focal Length 16mm WD 100-∞ 0.06kg

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-COB1628
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    Cobra Series Fixed Focal Length Lenses F2.8-F16 Focal Length 16mm WD 100-∞ 0.06kg

    Cobra Series Fixed Focal Length Lenses F2.8-F16 Focal Length 16mm WD 100-∞ 0.06kg OPT-COB1628


    Product Features
    ◆ The F/# aperture of cobra series fixed focal length lenses is F2.8-F16.
    ◆ Designed with low distortion that TV distortion is less than 0.2%
    ◆ Support high relative Illuminance that lens' main light angle5°. Being matched with cameras enables to get high evenness image.
    ◆ The OPT-COB1628 working distance is 100-∞.
    ◆ The image circle diameter is 9mm.
    ◆ Len filter thread: M27*P0.5.
    ◆ Cobra series fixed focal length lenses OPT-COB1628 focal length is 16mm.
    Back focal length (mm): back focal length is 15.76mm when its working distance is 100mm; back focal length is 13.57mm when its working distance is infinity.
    ◆ Weight of OPT-COB1628 fixed focal length lens is 0.06kg.

    ◆ The resolution of cobra series fixed focal length lenses OPT-COB1628 is 2.2µm.

    TV distortion is less than 0.10% at working distance of 300mm.

    ◆ Magnification at MOD is 0.135X at working distance of 100mm.

    Chief Ray Angle <5°.

    Model Explanation
    OPT-COB1628
    OPT: Brand name
    C: C-Mount
    OB: Cobra series lenses
    16: Focal length: 16mm
    28: F#: 2.8
    Specifications
    Product NameFixed Focal Length Lenses of Cobra Series
    ModelOPT-COB1628
    Focal Length16mm
    Aperture rangeFrom F2.8 to F16
    Working Distance(mm)100mm-∞
    TV Distortion(%)

    Less than 0.10% at working distance of 300mm

    Back focal length (mm)

    15.76mm when its working distance is 100mm

    13.57mm when its working distance is infinity

    Weight(kg)0.06kg
    Image circle Ø (mm)9mm
    Resolution (µm)
    2.2µm
    Chief Ray AngleLess than 5°
    Magnification(x) at MOD

    0.135X at working distance of 100mm

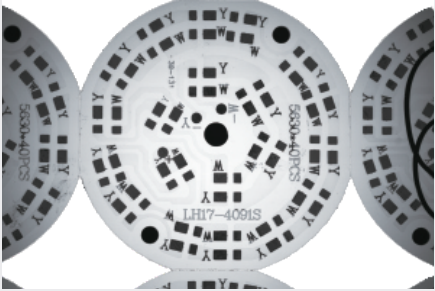

    Resolution Comparison
    Image taken via Cobra Series Fixed Focal Length Lens Image taken via other lens

    Application Examples:
    PCB alignment
    Dimensions (mm)
    OPT-COB1628
