    20-24VDC 256 Levels Machine Vision Components DPM Digital Current Controller

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-DPM0524E-4
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    20-24VDC 256 Levels Machine Vision Components DPM Digital Current Controller

    Machine Vision Controller DPM Mini Digital Current Controller 20 - 24V DC 256 Levels OPT-DPM0524E-4


    Product Features

    The DPM mini digital current controller can extend up to 16 channels via adding EMM0524 modules.
    ◆ The input voltage is 20 - 24V DC; It is quite convenient to use DC power on other devices.
    ◆ The mini digital current controller is designed as compact size.
    ◆ Using AutosenseTM technology
    Manual setting for Max. output current
    External trigger: External trigger input (e.g. camera trigger signal) for related light strobes and other sequences. (Strobe mode can greatly improve light source expectancy.)
    Simultaneous communication of multiple channels
    Convenient mounting with screws or on DIN rails
    Trigger pulse width setting
    RS232 interface is available.
    100Mb Ethernet interface is available.
    256-level light intensity control
    Controller voltage: 20 - 24V DC; Controller current: 3.5A/4CH 7.4A/16CH
    Auto Sensing Of Light Rated Current: For 10mA - 0.5A 24V LED light
    Manual Setting For Max. Output Current: 10mA - 0.5A
    Bi-protection: short-circuit protection, overcurrent protection
    Normal trigger pulse width is 1~999ms.
    High Intensity Trigger Pulse Width: 0.01~5.00ms
    Output power: 12W/CH 48W/4CH Total: 100W
    Interfaces of communication: RS232 and Ethernet
    Standby Power Consumption is less than 3W.
    Housing size(L*W*H) :59*69*110mm

    Model Meaning


    OPT-DPM0524E-4
    OPT: Brand name
    DPM: Mini digital current controller(EMM0524E is the extension module.)
    05: Max. output current: 0.5A
    24: Max. output voltage: 24V
    E: Additional info.: Ethernet
    4: Channels

    Specifications

    ModelOPT-DPM0524E-4
    Voltage20 - 24V DC
    Current3.5A/4CH 7.4A/16CH
    Illumination ModeContinuous/strobe
    Auto Sensing Of Light Rated CurrentFor 10mA - 0.5A 24V LED light
    Manual Setting For Max. Output Current10mA - 0.5A
    Intensity Control256 intensity levels
    ProtectionShort-circuit protection, Overcurrent protection
    TriggerLevel
    General Trigger Mode256 intensity levels
    Normal Trigger Pulse Width1~999ms
    High Intensity Trigger Pulse Width0.01~5.00ms
    Response Time≤80μs
    Response Frequency≤4KHz
    Channels4
    Output Power12W/CH 48W/4CH Total: 100W
    CommunicationRS232/Ethernet
    Standby Power Consumption<3W
    Dimensions(L*W*H)59*69*110mm
    Operating Temperature-5℃~50℃
    Weight(kg)0.28kg

    Device Overview



    Product Details



    Remarks

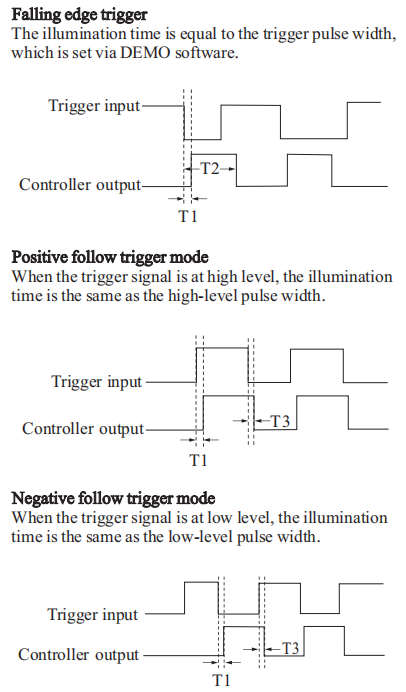

    1. T1: Enabling response time; T2: Trigger pulse width;
    T3: Disabling response time
    2. Normal trigger: T1 ≤ 80μs; T3 ≤ 10μs; T2 setting range: 1 - 999ms
    3. High intensity trigger: T1 ≤ 80μs; T3 ≤ 10μs;
    T2 setting range: 0.01 - 5.00ms

    Level Trigger Wiring Diagrams
    4 trigger channels, and bidirectional optocoupler inside
    Low level: 0 - 2V input voltage; high level: 5 - 24V input voltage.
    The rising edge trigger is the default trigger polarity. The diagrams are as below.

    Dimensions (mm)
    1.OPT-DPM0524E-4
    20-24VDC 256 Levels Machine Vision Components DPM Digital Current Controller
    2.OPT-EMM0524E-4
    20-24VDC 256 Levels Machine Vision Components DPM Digital Current Controller
