100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

    Buy cheap 100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller from wholesalers

    Buy cheap 100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller from wholesalers
    • Buy cheap 100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller from wholesalers

    100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-DPA2012E
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

    Machine Vision Controller Digital Current Controller 100~240V AC 50/60Hz 2A Current OPT-DPA2012E


    Product Features

    Programmable trigger: Maximum of 32 programmable steps and intensity, pulse width and trigger source can be defined in each step.

    Autosense TM technology

    ≤20μs trigger response time

    Up to 20kHz trigger response frequency

    Simultaneous communication of multiple channels

    Manual setting for max. output current

    256-level light intensity control

    External trigger: External trigger input(e.g. camera trigger signal) for related light strobes and other sequences.(Strobe mode can greatly improve light source life expectancy.)

    Trigger pulse width setting

    RS232 interface

    100Mb Ethernet interface

    Temperature controlled fan

    Convenient mounting with screws or on DIN rails


    Specifications

    ModelOPT-DPA2012E-4
    Voltage100~240V AC 50/60Hz
    Current2A
    Auto Sensing Of Light Rated CurrentFor 10mA-2A 12V LED light
    Manual Setting For Max. Output Current10mA~2A
    Intensity Control256 levels
    ProtectionNo
    TriggerLevel
    General Trigger Mode256 intensity levels settable
    Normal Trigger Time Unit1μs/ 10μs/1ms/100ms
    Normal Trigger Pulse Width1μs~30s
    High-Intensity Trigger Mode2A output per channel
    High Intensity Trigger Pulse Width0.01~5.00ms
    Programmable TriggerYes
    Response Time≤20μs
    Response Frequency≤20KHz
    Fan ControlVia temperature
    Channels4
    Output Power24W/CH
    Hi-Pot Test1500V AC 1Min
    Insulation500VDC
    Standby Power Consumption5W
    Dimensions(L*W*H)91*132*170mm
    Operating Temperature-5℃~50℃
    Weight(kg)0.84

    Dimensions (mm)
    OPT-DPA2012E-4
    100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

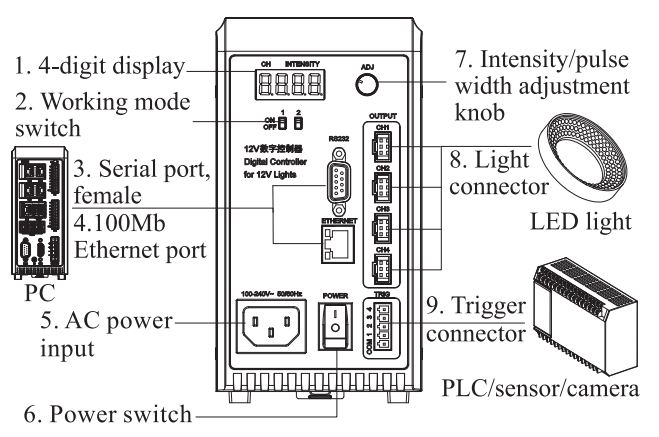

    Device Overview
