    F4.2-F32 Image Circle 82mm V Mount Lens / Machine Vision Camera Lens 0.53kg

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VGP116/4.2-0.33X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    F4.2-F32 Image Circle 82mm V Mount Lens / Machine Vision Camera Lens 0.53kg

    V58 MountLine Scan Lenses F4.2-F32 Image Circle 82mm Grampus Series Focal Length 116mm OPT-VGP116/4.2-0.33X


    Product Features
    Line scan lenses aperture F/#: F4.2-F32
    ◆ Distortion(%) : 0.085% | 0.01% | 0.107%
    ◆ Working distance(mm) : 462.5 | 414.5 | 367.5
    ◆ Object to image distance(mm): 639.5 | 596 | 554.8
    ◆ Focal length of line scan lenses of grampus series OPT-VGP116/4.2-0.33X is 116mm.
    ◆ Minimum distortion is 0.01% and distortion at primary magnification.
    Magnification: 0.29X | 0.33X | 0.38X
    ◆ It is able to match 82mm image circle and under of line and area scan camera.
    ◆ Flange focal distance(mm) of OPT-VGP116/4.2-0.33X lens is 116.4 | 120.9 | 126.8.
    ◆ Weight of OPT-VGP116/4.2-0.33X line scan lens is 0.53kg.
    ◆ The type of suitable camera mount for this line scan len is V58 mount.
    Model Explanation
    OPT-VGP116/4.2-0.33X
    OPT: Brand name
    V: V-Mount
    GP: Grampus series line scan lenses
    116: Focal length 116mm
    4.2: F#: 4.2
    0.33X: 0.33X primary magnification
    Specifications
    Product NameOPT Grampus Series Line Scan Lenses
    ModelOPT-VGP116/4.2-0.33X
    Focal Length116mm
    Working Distance(mm)462.5 | 414.5 | 367.5
    Aperture F/#
    F4.2-F32
    Image Circle(mm)82mm
    Magnification x0.29X | 0.33X | 0.38X
    Distortion(%)0.085% | 0.01% | 0.107%
    Flange Focal Distance(mm)116.4 | 120.9 | 126.8
    Object To Image Distance(mm)639.5 | 596 | 554.8
    Camera InterfaceV58
    Weight(Kg)0.53kg

    Resolution Comparison
    Image taken via Grampus Image taken via other lens
    Application Examples: Floor tile surface texture and color inspection

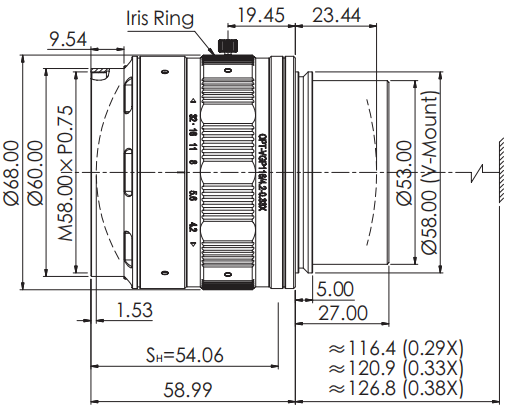

    Dimensions (mm)
    OPT-VGP116/4.2-0.33X
