    24V 17.3W 21.6W FP Series Collimated Backlight Surface Scratches Detection

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-FP180160
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    24V 17.3W 21.6W FP Series Collimated Backlight Surface Scratches Detection

    24V FP Series Machine Vision Backlight Collimated Backlights Surface Scratches Detection OPT-FP Series OPT-FP180160

    Product Features

    The collimated backlight source can be used together with the coaxial optical system to detect minor defects and damages on smooth surfaces.
    ◆ It can be applied to measure mechanical parts in machine vision industry.
    The housing size(length) and emitting surface(length) of machine vision backlight source OPT-FP180160 are respectively 180mm and 150mm.
    ◆ The output power of OPT-FP180160: White: 24V/21.6W; Red: 24V/17.3W; Blue: 24V/17.3W; Green: 24V/17.3W.
    OPT-FP180160 machine vision backlight can be customized in many ways of mounting and colors.
    ◆ Machine vision backlight OPT-FP180160 is able to be applied to different applications such as minor defects detection and inspection of damages on smooth surfaces.
    Application Cases
    ◆ Minor defects detection
    ◆ Inspection of damages on smooth surfaces
    Specifications
    ModelOPT-FP180160
    ColorRed/White/Blue/Green
    OutputW: 24V/21.6W R: 24V/17.3W B: 24V/17.3W G: 24V/17.3W
    Channels1
    Housing Size(Length)180
    Recommended ControllerOPT-DPA2024E
    Emitting Size(Diameter)150

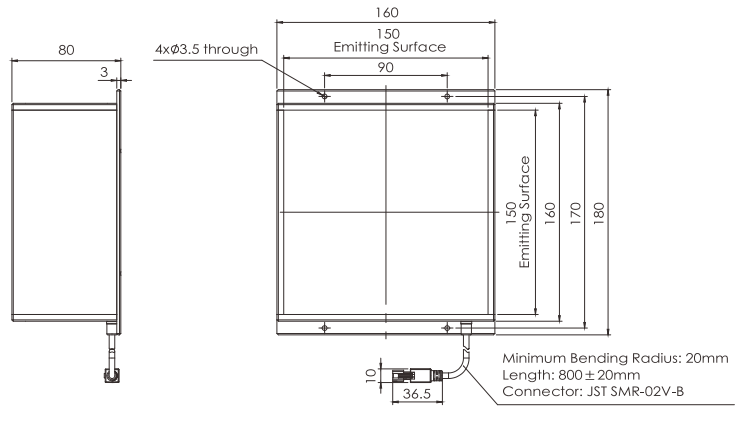

    Dimensions (mm)
    OPT-FP180160
    24V 17.3W 21.6W FP Series Collimated Backlight Surface Scratches Detection


    Product Features


    FAQ


    What is IP67?


    IP67, the international protection marking indicates the protection rating of electrical equipment from foreign objects.

    The first figure 6 represents no ingress of dust. The second figure 7 indicates the protection from immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30mins.

    OPT waterproof light conforms to IP67 rating, which can be used in humid and dusty environments. All OPT lights can be designed to be dustproof and waterproof.
