    F9.8 Machine Vision Telecentric Lens

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-TS0258-189-AL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    F9.8 Machine Vision Telecentric Lens

    TS Series Large FOV Bi-telecentric Lenses F9.8 Mag. 0.258x MTF30 85lp/mm 0.88kg OPT-TS0258-189-AL


    Product Features
    ◆ The F/# aperture is 9.8.
    ◆ The OPT-TS0258-189-AL working distance(mm) is 189±3mm.
    OPT-TS0258-189-AL long WD machine vision telecentric lenses magnification is 0.258x.
    Image circle Ø (mm) of OPT-TS0258-189-AL is 16.6mm.
    ◆ The weight(kg) of OPT-TS0258-189-AL long WD machine vision telecentric lens is 0.88kg.
    ◆ Maximum distortion(%) of OPT-TS0258-189-AL is 0.1%.

    ◆ The DOF(mm) of OPT-TS0258-189-AL: 12.15mm.

    MTF30(lp/mm) of OPT-TS0258-189-AL is 85lp/mm.

    FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 22.5×16.7; FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 27.9×20.5; FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 34.1×25.6; FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 49.6×37.2


    Model Explanation
    OPT-TS0258-189-AL
    OPT: Brand name
    TS:TS series large FOV bi-telecentric lenses
    0258: Magnification: 0.258x
    189: Working distance: 189mm
    AL: Adjustable back focal length
    Specifications
    Product NameTS Series Large FOV Bi-telecentric Lenses
    Model
    OPT-TS0258-189-AL
    F/# aperture9.8
    Mag. (x)0.258x
    Image circle Ø

    16.6mm

    Maximum distortion

    0.1%

    Weight(kg)0.88kg
    DOF (mm)
    12.15mm
    MTF30(lp/mm)

    85lp/mm

    FOV (mm×mm) of 1/3″ | 4.8×3.6

    22.5×16.7

    FOV (mm×mm) of 1/2.5″ | 5.8×4.327.9×20.5

    FOV (mm×mm) of 1/2.5″ | 5.8×4.3

    34.1×25.6

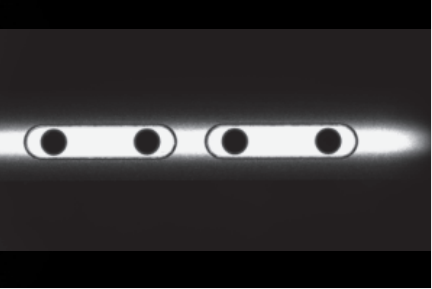

    Application Examples:


    Inner dimension gauging of back cover of mobile phone

    Dimensions (mm)
    OPT-TS0258-189-AL
