    24Volt Collimated Backlight

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-FP120100
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    24Volt Collimated Backlight

    Collimated Backlights 24V Machine Vision Backlight Highly Collimated Illumination OPT-FP Series OPT-FP120100

    Product Features

    ◆ The collimated backlight which can provide highly collimated illumination when inspection or defects detection or mechanical parts gauging.
    The collimated backlight source are designed to very compact so that it can take up very small space but for better effect.
    It can provide uniform and collimated illumination for high precision measurement in machine vision industry.
    Application Cases
    ◆ Mechanical workpieces measurement
    ◆ Electronic components contour inspection
    Specifications
    ModelOPT-FP120100
    ColorRed/White/Blue/Green
    OutputW: 24V/8.6W R: 24V/6.9W B: 24V/6.9W G: 24V/6.9W
    Channels1
    Housing Size(Length)120
    Recommended ControllerOPT-DPA2024E
    Emitting Size(Diameter)90

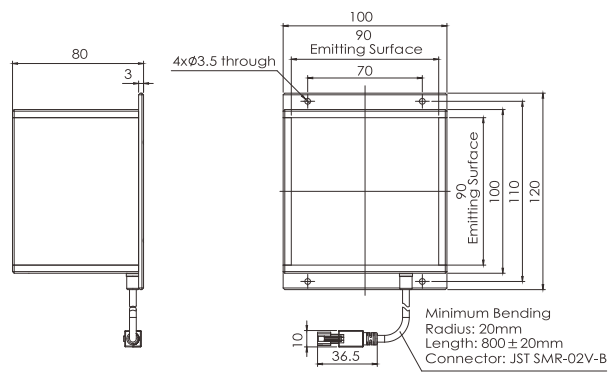

    Dimensions (mm)
    OPT-FP120100
    24Volt Collimated Backlight


    Product Features


    Applications: Mobile phone screen inner frame positioning
