    DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-APM0524B-2
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

    1.8A Machine Vision Controller APM Mini Analog Voltage Controller DC20~24V 12W/CH OPT-APM0524B-2


    Product Features

    Compact appearance design
    20 - 24V DC input voltage; can be convenient to use DC power on other devices
    Manual stepless light intensity control
    Convenient mounting with screws or on DIN rails
    External trigger: External trigger input (e.g. camera trigger signal) for related light strobes and other sequences. (Strobe mode can greatly improve light source expectancy.)
    ◆ Current: 1.8A
    Illumination mode: strobe/continuous
    Protection forreverse polarity connection is available.
    ON/OFF mode conversion is supported.
    ◆ Product weight(kg): 0.1kg
    ◆ The APM mini analog voltage controller can normally operate under the environment of temperature from -5℃ to 50℃.
    Dimensions(L*W*H): 24*62*108.3mm
    ◆ The standby power consumption is no more than 3 watt.
    ◆ The output power is 12W/CH.

    Model Meaning


    OPT-APM0524B-2
    OPT: Brand name
    APM: Analog voltage controller
    05: Max. output current: 0.5A
    24: Max. output voltage: 24V
    B: Additionalinfo.: The 2nd generation
    2: Channels

    Specifications

    ModelOPT-APM0524B-2
    VoltageDC20~24V
    Current1.8A
    Illumination ModeContinuous/strobe
    Intensity ControlStepless
    TriggerSwitch
    Response Time≤80μs
    Response Frequency≤1KHz
    Channels2
    Output Power12W/CH
    Standby Power Consumption≤3W
    Dimensions(L*W*H)24*62*108.3mm
    Operating Temperature-5℃~50℃
    Weight(kg)0.1
    ON/OFF Mode ConversionSupport
    Protection Forreverse Polarity ConnectionYes

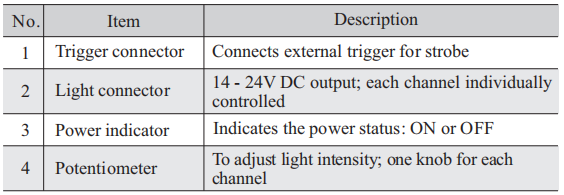

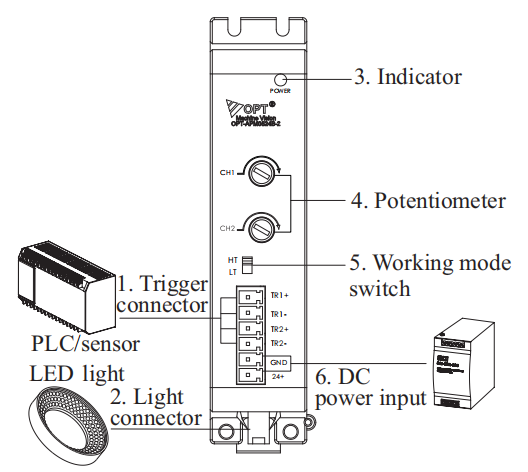

    Device Overview




    Product Details

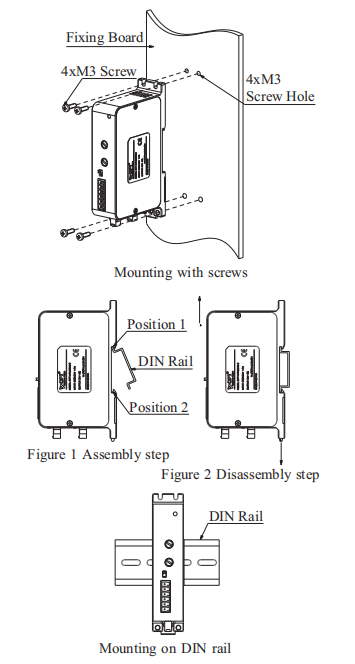

    Mounting


    Dimensions (mm)
    OPT-APM0524B-2
