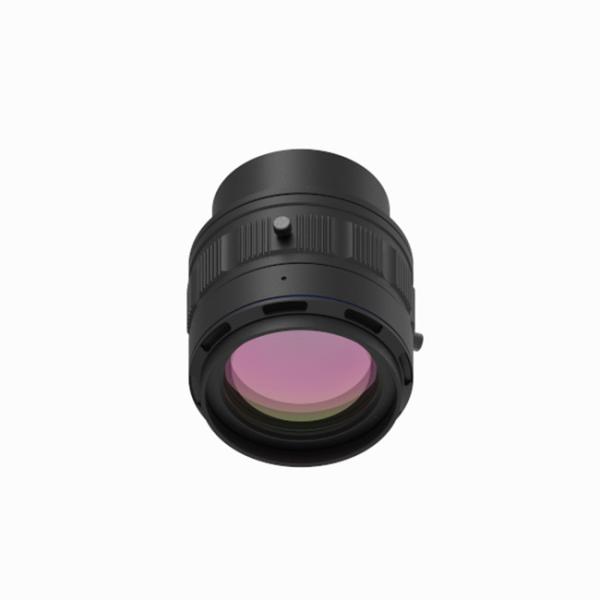

    F3.8-F22 Focal Length 117mm Line Scan Lenses 0.50kg V58 Camera Interface

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VGP116/3.8-0.7X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    F3.8-F22 Focal Length 117mm Line Scan Lenses 0.50kg V58 Camera Interface

    Grampus Series Line Scan Lenses F3.8-F22 Image Circle 82mm Focal Length 117mm 0.50kg OPT-VGP116/3.8-0.7X


    Product Features
    Line scan lenses aperture F/#: F3.8-F22
    ◆ Distortion(%) : 0.09% | 0.025% | 0.04%
    ◆ Working distance(mm) : 251.4 | 240.4 | 232.3
    ◆ Object to image distance(mm): 460 | 454.1 | 450.1
    ◆ Focal length of line scan lenses of grampus series OPT-VGP116/3.8-0.7X is 117mm.
    ◆ Minimum distortion is 0.025% and distortion at primary magnification.
    Magnification: 0.66X | 0.7X | 0.74X
    ◆ Able to be matched with 82mm image circle and under of line and area scan camera.
    ◆ Flange focal distance(mm) of OPT-VGP116/3.8-0.7X lens is 153 | 158.1 | 162.3.
    ◆ Weight of OPT-VGP116/3.8-0.7X line scan lens is 0.50kg.
    ◆ The camera mount suitable for this line scan lens is V58 mount.
    Model Explanation
    OPT-VGP116/3.8-0.7X
    OPT: Brand name
    V: V-Mount
    GP: Grampus series line scan lenses
    116: Focal length 116mm
    3.8: F#: 3.8
    0.7X: 0.7X primary magnification
    Specifications
    Product NameGrampus Series Line Scan Lenses
    ModelOPT-VGP116/3.8-0.7X
    Focal Length116mm
    Working Distance(mm)251.4 | 240.4 | 232.3
    Aperture F/#
    F3.8-F22
    Image Circle(mm)82mm
    Magnification x0.66X | 0.7X | 0.74X
    Distortion(%)0.09% | 0.025% | 0.04%
    Flange Focal Distance(mm)153 | 158.1 | 162.3
    Object To Image Distance(mm)460 | 454.1 | 450.1
    Camera InterfaceV58
    Weight(Kg)0.50kg

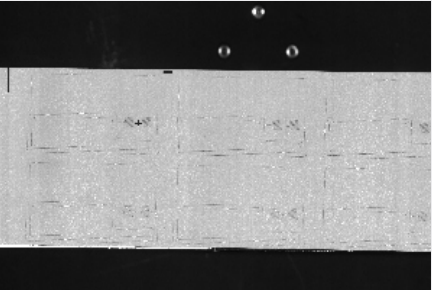

    Resolution Comparison
    Image taken via Grampus Image taken via other lens
    Application Examples: Film printed circuit inspection
    Dimensions (mm)
    OPT-VGP116/3.8-0.7X
