M72 Mount Line Scan Lenses

    Buy cheap M72 Mount Line Scan Lenses from wholesalers

    Buy cheap M72 Mount Line Scan Lenses from wholesalers
    • Buy cheap M72 Mount Line Scan Lenses from wholesalers

    M72 Mount Line Scan Lenses

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-MHK60/5.1-0.07X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    M72 Mount Line Scan Lenses

    Hawk Series Line Scan Lenses M72 Mount Image Circle 63mm F5.1-F22 Focal Length 60mm OPT-MHK60/5.1-0.07X


    Product Features
    ◆ High relative illuminance across the entire image as well as low vignetting
    ◆ It is able to match 63mm image circle and under of line and area scan camera.
    ◆ It is designed to be high resolution.
    Line scan lenses aperture F/#: F5.1-F22
    ◆ Distortion(%) of lenses is 0.15% | 0.22% | 0.28%.
    ◆ Working distance(mm) : 3017 | 874 | 417
    ◆ Object to image distance(mm): 3149.8 | 1009.8 | 557.6
    ◆ Focal length of line scan lenses of hawk series OPT-MHK60/5.1-0.07X is 60mm.
    ◆ Minimum distortion is 0.15% and distortion at primary magnification.
    Magnification: 0.02X | 0.07X | 0.15X
    ◆ Flange focal distance(mm) of OPT-MHK60/5.1-0.07X lens is 12 | 12 | 12.
    ◆ Weight of OPT-MHK60/5.1-0.07X line scan lens is 1.06kg.
    ◆ The type of camera mount which is suitable for this line scan len is M72 mount.
    Model Explanation
    OPT-MHK60/5.1-0.07X
    OPT: Brand name
    M: M-Mount
    HK: Hawk series line scan lenses
    60: Focal length 60mm
    5.1: F#: 5.1
    0.07X: 0.07X primary magnification
    Specifications
    Product NameLine Scan Lenses Hawk Series
    ModelOPT-MHK60/5.1-0.07X
    Focal Length60mm
    Working Distance(mm)3017 | 874 | 417
    Aperture F/#
    F5.1-F22
    Image Circle(mm)63mm
    Magnification x0.02X | 0.07X | 0.15X
    Distortion(%)0.15% | 0.22% | 0.28%
    Flange Focal Distance(mm)12 | 12 | 12
    Object To Image Distance(mm)3149.8 | 1009.8 | 557.6
    Camera InterfaceM72
    Weight(Kg)1.06kg

    Resolution Comparison
    Image taken via OPT-VHK 120/5.8-1.0X Image taken via other lens
    Application Examples:

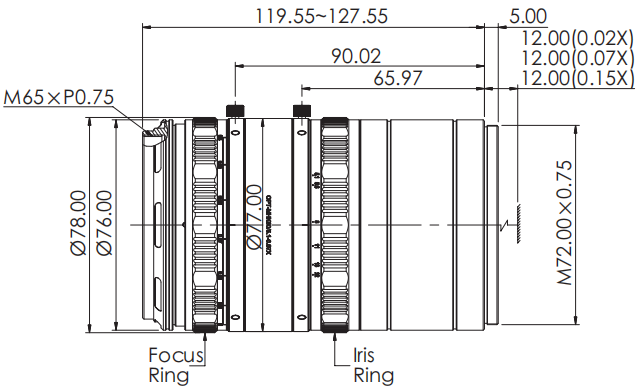

    Dimensions (mm)
    OPT-MHK60/5.1-0.07X
