    Low Distortion Coloretto Series OPT Line Scan Lenses F2.8-F16

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VCT28/2.8-0.10X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    Low Distortion Coloretto Series OPT Line Scan Lenses F2.8-F16

    Line Scan Lenses Industrial Coloretto Series Line Scan Lenses F2.8-F16 Low Distortion OPT-VCT28/2.8-0.10X


    Product Features
    ◆ It is well compatible to line scan camera with 7um pixel and with high resolution optical design.
    ◆ Relative distortion is below 0.1%. Distortion is at primary magnification.
    Wide image circle range: from Ø 30mm to Ø 82mm
    ◆ Broad spectrum range is from 400 to 700nm and achromatic design
    Magnification: Range: 0.04x - 0.33x; suitable for various industrial applications
    ◆ Suitable for 30mm image circle and under of line and area scan camera
    Coloretto Series Line Scan Lenses VCT28/2.8-0.10X feature low distortion and its distortion(%Max) is less than 0.1%.
    ◆ The Focal Length is 29mm.
    Working Distance(mm) of this industrial lenses is 723.0 | 288.0 | 85.9.
    Aperture F/#: F2.8-F16
    Image Circle(mm) is 30mm.
    Magnification of lenses is 0.04X, 0.10X, 0.33X.
    Distortion(%) of lenses is about 0.40%, 0.10%, 0.50%.
    Flange Focal Distance(mm) is 30.9 | 32.7 | 39.2.
    Object To Image Distance(mm): 777.9 | 344.6 | 149.1.
    The type of interface of camera is V38.
    Model Explanation
    OPT-VCT28/2.8-0.10X
    OPT: Brand name
    V: V-Mount
    CT: Coloretto series line scan lenses
    28: Focal length 29mm
    2.8: F#: 2.8
    0.10X: 0.10X primary magnification
    Specifications
    ModelOPT-VCT28/2.8-0.10X
    Focal Length29
    Working Distance(mm)723.0 | 288.0 | 85.9
    Aperture F/#F2.8-F16
    Image Circle(mm)30
    Magnification x0.04X | 0.10X | 0.33X
    Distortion(%)0.40% | 0.10% | 0.50%
    Distortion(%Max)<0.1%
    Flange Focal Distance(mm)30.9 | 32.7 | 39.2
    Object To Image Distance(mm)777.9 | 344.6 | 149.1
    Camera InterfaceV38
    Weight(Kg)0.13
    Resolution Comparison
    Image taken via Coloretto Image taken via other lens
    MTF Chart
    SPATIAL FREQUENCY IN CYCLES PER MM
    OPT-VCT28/2.8-0.10x

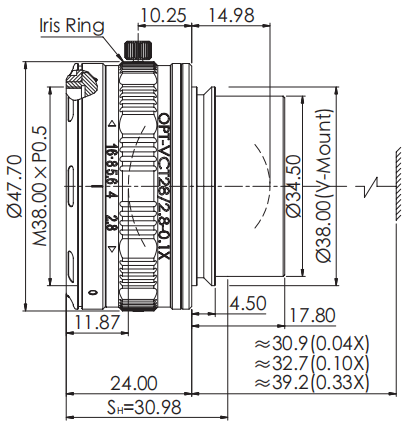

    Dimensions (mm)
    OPT-VCT28/2.8-0.10X
