    Hawk Series Focal Length 98.7mm Line Scan Lens F3.9-F32 High Uniformity

    Ask Lasest Price
    Brand Name : OPT
    Model Number : OPT-VHK98/3.9-0.23X
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 7 work days at the soonest
    • Product Details
    • Company Profile

    Hawk Series Focal Length 98.7mm Line Scan Lens F3.9-F32 High Uniformity

    Hawk Series Line Scan Lenses Image Circle 63mm F3.9-F32 Focal Length 98.7mm OPT-VHK98/3.9-0.23X


    Product Features
    ◆ High resolution
    High resolution optical design; Ø 63mm image circle[1],compatible with (16k)/3.5μm, (12k)/5μm and (8k)/7μm line scan cameras
    ◆ Low distortion
    Total distortion < 0.1%[2], Min. distortion as low as 0.005%
    ◆ High uniformity
    High relative illumination across the entire image with low vignetting
    ◆ Wide magnification range: 0.21x - 2.1x
    [1] Up to 126mm image circle for OPT-VHK116/8.6-2.0X
    [2] Distortion at primary magnification
    Line scan lenses aperture F/#: F3.9-F32
    ◆ Distortion(%) of lenses is 0.2% | 0.04% | 0.15%.
    ◆ Working distance(mm) : 497.9 | 456.9 | 407.6.
    ◆ Object to image distance(mm): 648.8 | 609.8 | 563.5.
    ◆ Focal length of hawk series line scan lenses OPT-VHK98/3.9-0.23X is 98.7mm.
    Magnification: 0.21X | 0.23X | 0.26X.
    ◆ Flange focal distance(mm) of OPT-VHK98/3.9-0.23X lens is 88 | 90 | 93.
    Model Explanation
    OPT-VHK98/3.9-0.23X
    OPT: Brand name
    V: V-Mount
    HK: Hawk series line scan lenses
    98: Focal length 98.7mm
    3.9: F#: 3.9
    0.23X: 0.23X primary magnification
    Specifications
    Product NameHawk Series Line Scan Lenses
    ModelOPT-VHK98/3.9-0.23X
    Focal Length98.7mm
    Working Distance(mm)497.9 | 456.9 | 407.6
    Aperture F/#
    F3.9-F32
    Image Circle(mm)63mm
    Magnification x0.21X | 0.23X | 0.26X
    Distortion(%)0.2% | 0.04% | 0.15%
    Flange Focal Distance(mm)88 | 90 | 93
    Object To Image Distance(mm)648.8 | 609.8 | 563.5
    Camera InterfaceV58
    Weight(Kg)0.51kg

    Resolution Comparison
    Image taken via OPT-VHK 120/5.8-1.0X Image taken via other lens

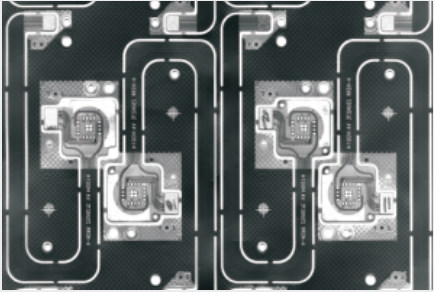

    Application Examples: FPC locating and cutting

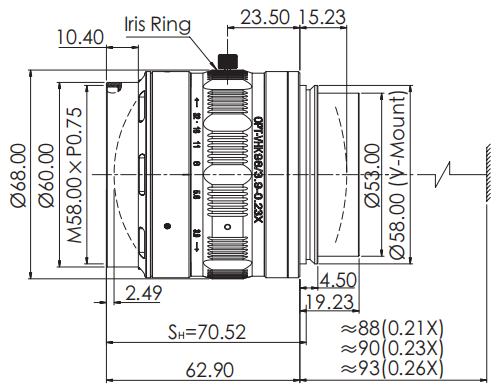

    Dimensions (mm)
    OPT-VHK98/3.9-0.23X
